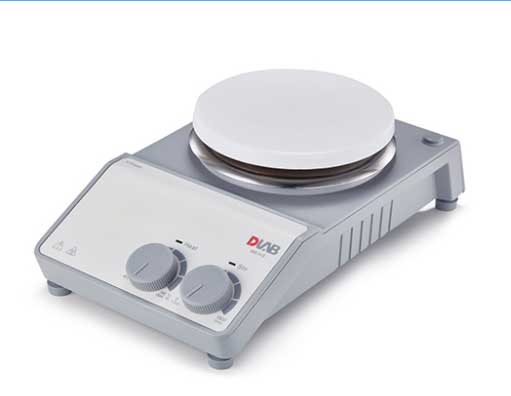

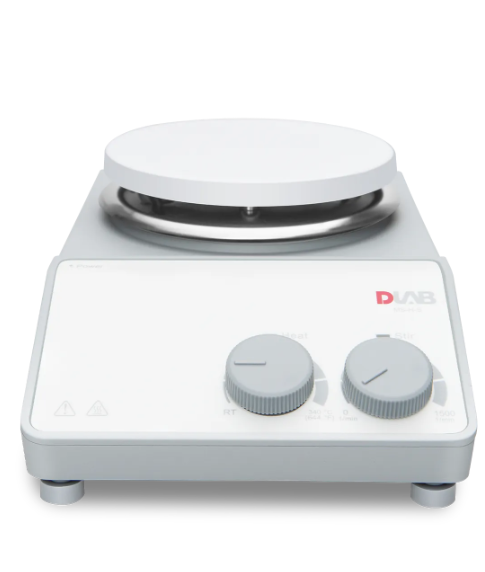

DLAB MS-H-S Hotplates ແລະ stirrers (20 lits, 1500 rpm)

Features

Magnetic hotplate stirrer with a brushless DC motor.

Ceramic-coated stainless steel work surface for enhanced chemical resistance.

Safety circuit with over-temperature protection.

Technical Specifications

Work surface dimensions: Ø135 mm.

Heating power: 500 W.

Total power: 530 W.

Stirring positions: 1.

Maximum stirring volume: 20 liters.

Maximum stir bar length: 80 mm.

Stirring speed range: 0 – 1500 rpm.

Speed ​​resolution: ± 1 rpm.

Temperature display: Graduated control knob.

Speed ​​display: Graduated control knob.

Temperature range: Ambient temperature to 340°C.

Temperature display accuracy: ±0.5°C.

Over-temperature protection: 420°C.

Operating environment: 5 – 40°C, 80% RH.

Protection class: IP42.

Dimensions (W x D x H): 160 x 280 x 85 mm.

Weight: 2.8 kg.

Power supply: 220 V, 50/60 Hz.

Included Items

Main unit (MS-H-S).

Power cord.

User manual.
