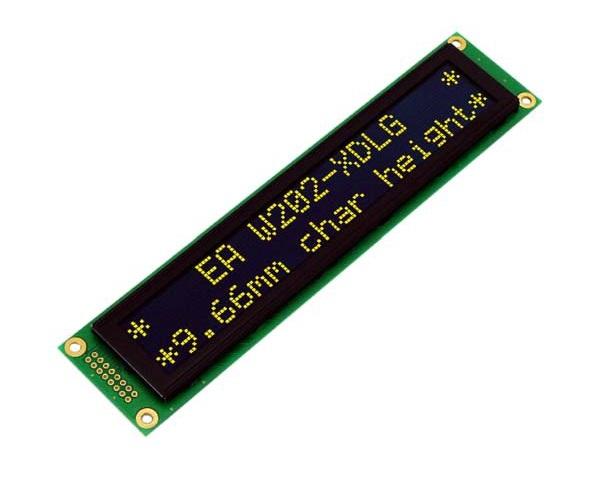

DISPLAY VISIONS EA W202-XLG ຈໍ OLED ສີເຫຼືອງ/ສີຂຽວ 2x20 5.5mm 85x18.6mm ສະແດງ

Width: 116 mm

Height: 37 mm

Thickness: 9.8 mm

Unit Weight: 41.165 g

Display Type: OLED Display

Interface Type: 3-Wire

Power Consumption: 175 mW

Illumination Color: Green, Yellow

Pixel Size - W x H: 0.6 mm x 0.65 mm

Viewing Area - W x H: 85 mm x 18.6 mm

Character Count x Line: 20 x 2

Module Size - W x H x T: 116 mm x 37 mm x 9.8 mm

Operating Supply Current: 15 mA to 50 mA

Operating Supply Voltage: 3.3 V to 5 V

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 40 C
