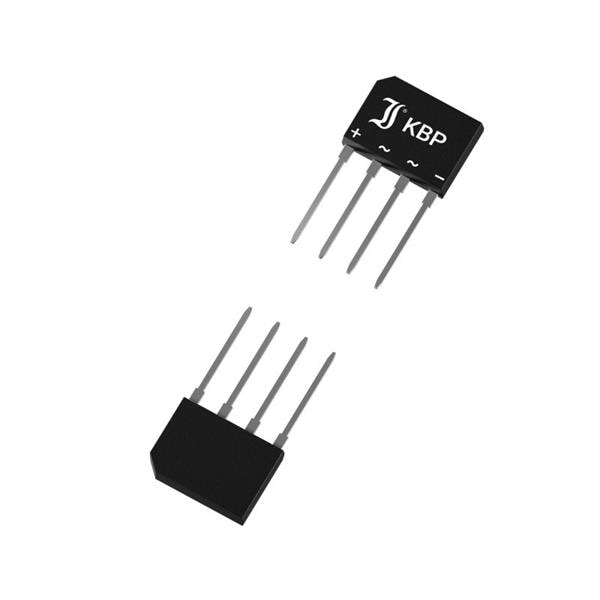

Diotec Semiconductor KBP302G ສະຕະປະລະພາບຟາສດຽວ Bridge, single phase, KBP, 200V, 3A, 150C

Width: 3.5 mm

Height: 10.4 mm

Length: 14.5 mm

Technology: Si

Unit Weight: 1.674 g

Mounting Style: Through Hole

Max Surge Current: 65 A

Termination Style: Solder Pin

If - Forward Current: 3 A

Ir - Reverse Current: 5 uA

Peak Reverse Voltage: 200 V

Vf - Forward Voltage: 1.1 V

Vr - Reverse Voltage: 200 V

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 50 C
