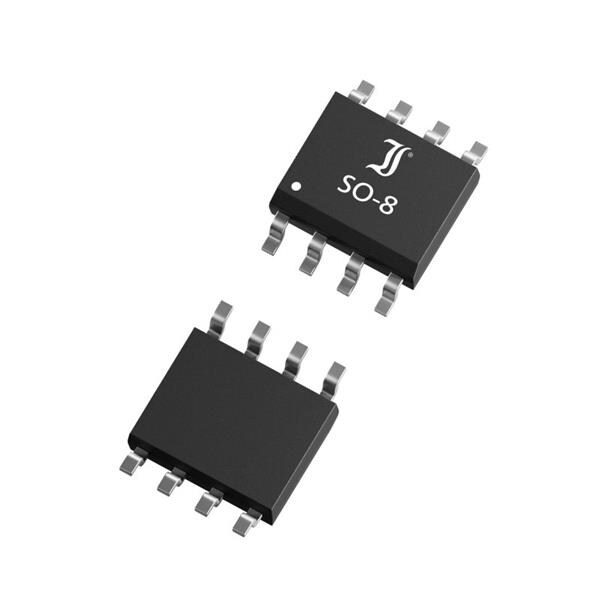

Diotec Semiconductor DI78L06DAB ຕົວຄວບຄຸມແຮງແຟດ LDO VR, SO-8, 30V, 5.76V, 6.24V

Polarity: Positive

Tolerance: 5 %

Output Type: Fixed

Unit Weight: 115 mg

Mounting Style: SMD/SMT

Output Current: 100 mA

Output Voltage: 6 V

Dropout Voltage: 1.7 V

Line Regulation: 150 mV

Load Regulation: 60 mV

Number of Outputs: 1 Output

Quiescent Current: 6 mA

Moisture Sensitive: Yes

Input Voltage - Max: 30 V

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 46 dB
