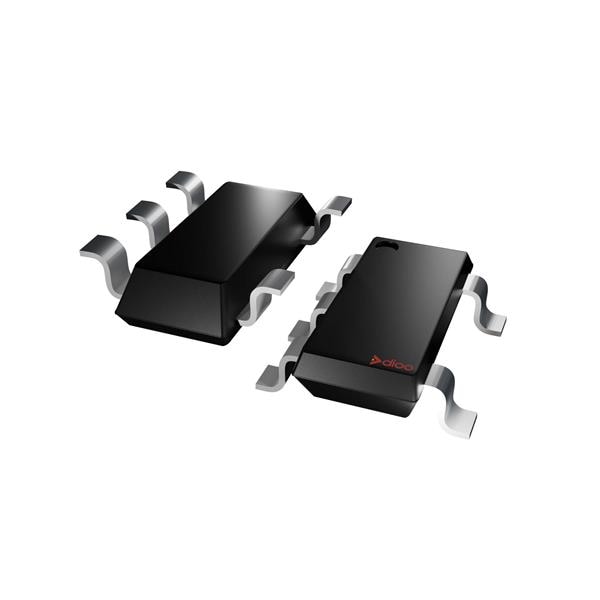

DIOO DIO7708A330ST5 Voltage Regulators 30V 300mA, Low Power Linear Voltage Regulator, Supports Adjustable Output Voltage & Fixed Output Voltage

Polarity: Positive

Output Type: Fixed

Mounting Style: SMD/SMT

Output Current: 300 mA

Output Voltage: 3.3 V

Dropout Voltage: 260 mV

Line Regulation: 10 mV

Load Regulation: 10 mV

Number of Outputs: 1 Output

Quiescent Current: 4 uA

Reference Voltage: 1.2 V

Input Voltage - Max: 24 V

Input Voltage - Min: 2.75 V

Operating Temperature Range: - 40 C to + 105 C

Voltage Regulation Accuracy: 2 %

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 60 dB
