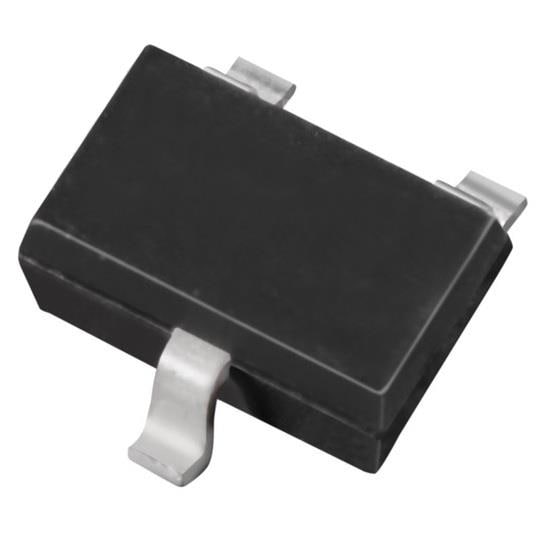

Diodes Incorporated ZRC330F02TA Voltage References 2% 3.3V

Width: 1.3 mm

Height: 1 mm

Length: 2.9 mm

Topology: Shunt References

Unit Weight: 8 mg

Mounting Style: SMD/SMT

Output Voltage: 3.3 V

Reference Type: Shunt Precision References

Initial Accuracy: 2 %

Shunt Current - Max: 5 mA

Shunt Current - Min: 20 uA

Description/Function: Bandgap Circuit

Temperature Coefficient: 50 PPM / C

Operating Supply Current: 5 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Series VREF - Input Voltage - Max: 20 V
