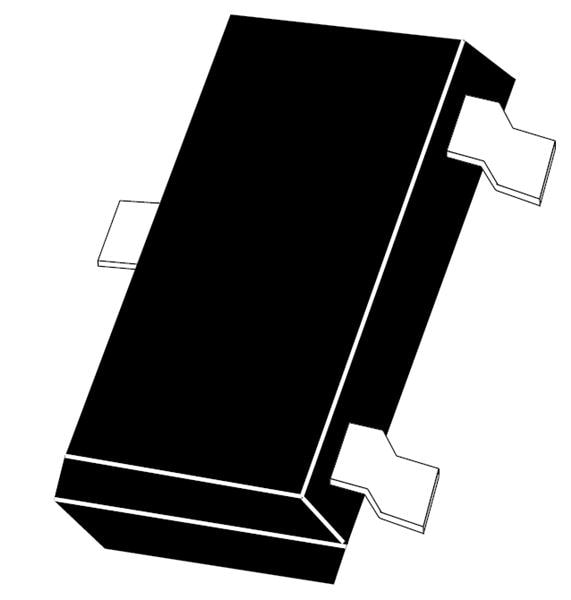

Diodes Incorporated ZR40401F41TA ແຫຼ່ງອ້າງອີງແຮງແສງໄຟຟ້າ 1% 4.096V

Width: 1.4 mm

Height: 1 mm

Length: 3.05 mm

Topology: Shunt References

Unit Weight: 8 mg

Mounting Style: SMD/SMT

Output Voltage: 4.096 V

Reference Type: Shunt References

Initial Accuracy: 1 %

Shunt Current - Max: 15 mA

Shunt Current - Min: 60 uA

Description/Function: Bandgap Circuit

Temperature Coefficient: 100 PPM / C

Operating Supply Current: 120 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Series VREF - Input Voltage - Max: 20 V
