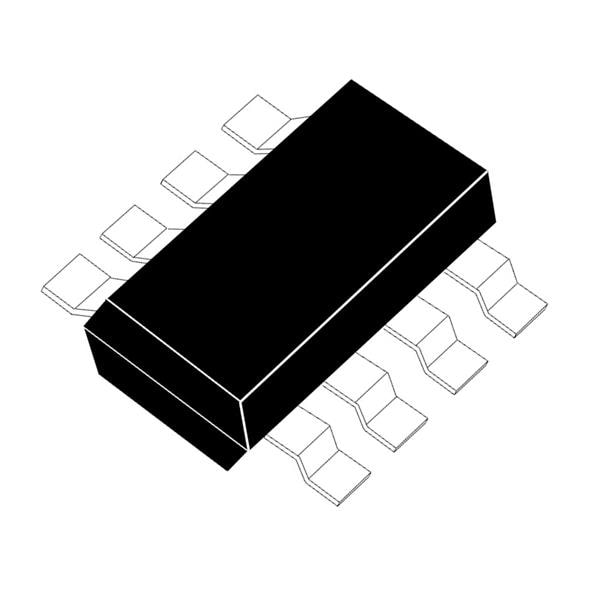

Diodes Incorporated ZDT6702TA Darlington Transistors NPN/PNP Darl 20V

Width: 3.7 mm

Height: 1.6 mm

Length: 6.7 mm

Unit Weight: 715.250 mg

REACH - SVHC: Details

Configuration: Dual

Mounting Style: SMD/SMT

Transistor Polarity: NPN, PNP

Pd - Power Dissipation: 2.25 W

DC Current Gain hFE Max: 5000

Gain Bandwidth Product fT: 140 MHz

Emitter- Base Voltage VEBO: 10 V

Maximum Operating Frequency: 140 MHz

Collector- Base Voltage VCBO: 80 V

Continuous Collector Current: 1.75 A

Maximum DC Collector Current: 1.75 A

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 55 C

DC Collector/Base Gain hfe Min: 500 at 4 A, 1000 at 4 A

Maximum Collector Cut-off Current: 10 nA

Collector- Emitter Voltage VCEO Max: 60 V
