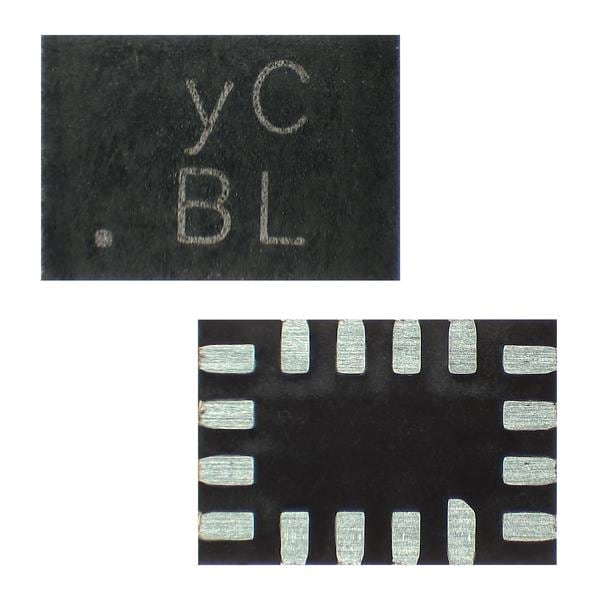

Diodes Incorporated PI3CH3253ZTAEX Multiplexer Switch ICs Bus Switch 3V U-QFN1826-16 T&R 3K

Bandwidth: 500 MHz

Supply Type: Single Supply

Configuration: 2 x 4:1

On Time - Max: 5.5 ns

Mounting Style: SMD/SMT

Off Time - Max: 6 ns

Number of Channels: 2 Channel

Off Isolation - Typ: 60 dB

On Resistance - Max: 4 Ohms

Supply Current - Max: 100 uA

Pd - Power Dissipation: 350 mW

Propagation Delay Time: 0.3 ns

Operating Supply Voltage: 3.3 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
