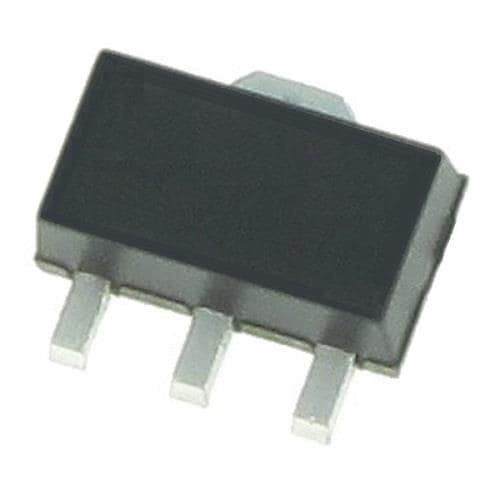

Diodes Incorporated LM4041DQFTA Voltage References VREG Shunt Reference

Shutdown: No Shutdown

Unit Weight: 8 mg

Qualification: AEC-Q100

Mounting Style: SMD/SMT

Output Voltage: 1.24 V to 10 V

Reference Type: Shunt Precision References

Initial Accuracy: 1 %

Shunt Current - Min: 45 uA

Supply Current - Max: 10 mA

Maximum Output Voltage: 15 V

Temperature Coefficient: 150 PPM / C

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

Series VREF - Input Voltage - Max: 1.225 V
