Fall Time: 15.7 ns
Rise Time: 8.6 ns
Technology: Si
Unit Weight: 97 mg
Channel Mode: Enhancement
REACH - SVHC: Details
Configuration: Single
Qualification: AEC-Q101

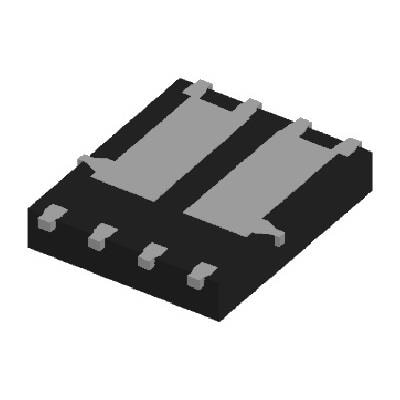

Mounting Style: SMD/SMT
Transistor Type: 1 N-Channel
Qg - Gate Charge: 33.5 nC
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Pd - Power Dissipation: 2.8 W
Vgs - Gate-Source Voltage: - 16 V, + 16 V
Typical Turn-On Delay Time: 4.5 ns
Typical Turn-Off Delay Time: 35.9 ns
Id - Continuous Drain Current: 11.76 A
Maximum Operating Temperature: + 175 C
Minimum Operating Temperature: - 55 C
Rds On - Drain-Source Resistance: 10 mOhms
Vds - Drain-Source Breakdown Voltage: 60 V
Vgs th - Gate-Source Threshold Voltage: 700 mV
