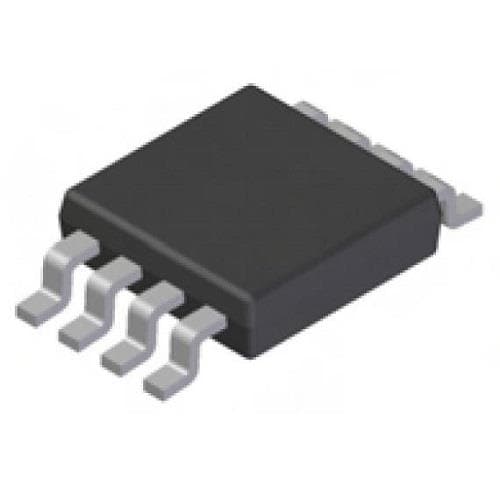

Diodes Incorporated AS2333S-13 ເອັບແລັມປິຟາຍເຊີຍງານ OpAmp ສະເພາະທົ່ວໄປ SO-8 T&R 2.5K

Shutdown: No Shutdown

Input Type: Rail-to-Rail

Output Type: Rail-to-Rail

Unit Weight: 750 mg

Mounting Style: SMD/SMT

SR - Slew Rate: 120 mV/us

Number of Channels: 2 Channel

Supply Voltage - Max: 5.5 V, +/- 2.75 V

Supply Voltage - Min: 1.8 V, +/- 900 mV

Ib - Input Bias Current: 200 pA

Operating Supply Current: 12 uA

Ios - Input Offset Current: 400 pA

Output Current per Channel: 25 mA

Vos - Input Offset Voltage: 8 uV

Maximum Dual Supply Voltage: +/- 2.75 V

Minimum Dual Supply Voltage: +/- 900 mV

GBP - Gain Bandwidth Product: 350 kHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

In - Input Noise Current Density: 100 fA/sqrt Hz

CMRR - Common Mode Rejection Ratio: 120 dB
