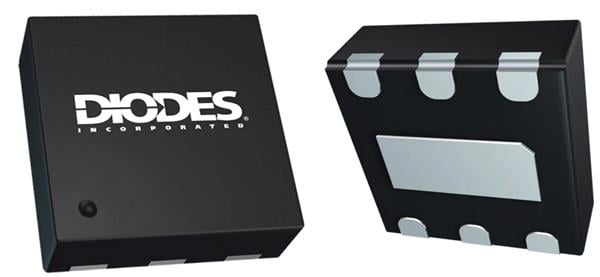

Diodes Incorporated AP7343Q-09FDZW-7 ຕົວຄວບຄຸມໄຟຟ້າລະດັບຕໍ່ເນື່ອງລະດັບຕໍ່ໄຟຟ້າລະດັບຕ່ຳ LDO ລະດັບໄຟຟ້າຕ່ຳມາດຕະຖານ W-DFN2020-6 T&R 3K

Output Type: Fixed

Mounting Style: SMD/SMT

Output Current: 300 mA

Output Voltage: 900 mV

Dropout Voltage: 510 mV

Line Regulation: 0.02 %/V

Load Regulation: 15 mV

Number of Outputs: 1 Output

Quiescent Current: 35 uA

Input Voltage - Max: 5.25 V

Input Voltage - Min: 1.7 V

Dropout Voltage - Max: 820 mV

Pd - Power Dissipation: 400 mW

Operating Temperature Range: - 40 C to 125 C

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 75 dB
