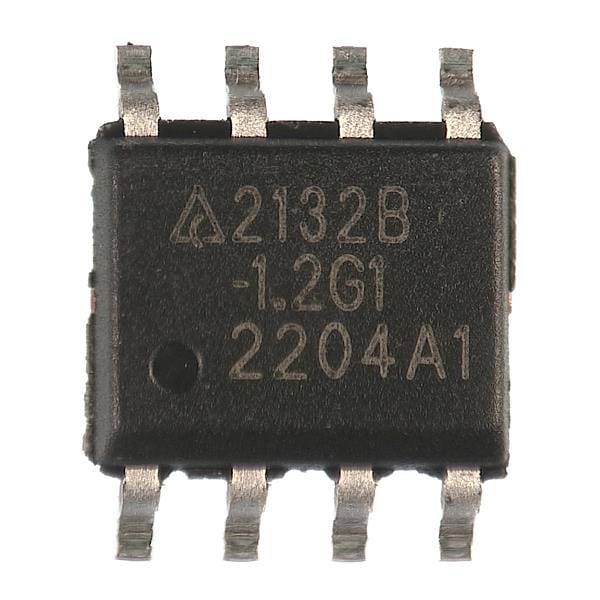

Diodes Incorporated AP2132BMP-1.2TRG1 CMOS LDO Regulator 2A CMOS LDO 0.6V ຫາ 3.0V

Polarity: Positive

Output Type: Fixed

Mounting Style: SMD/SMT

Output Current: 2 A

Output Voltage: 1.2 V

Dropout Voltage: 300 mV

Line Regulation: 2 mV

Load Regulation: 10 mV

Number of Outputs: 1 Output

Moisture Sensitive: Yes

Input Voltage - Max: 5.5 V

Input Voltage - Min: 1.4 V

Dropout Voltage - Max: 450 mV

Operating Supply Current: 300 uA

Voltage Regulation Accuracy: 2 %

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 60 dB
