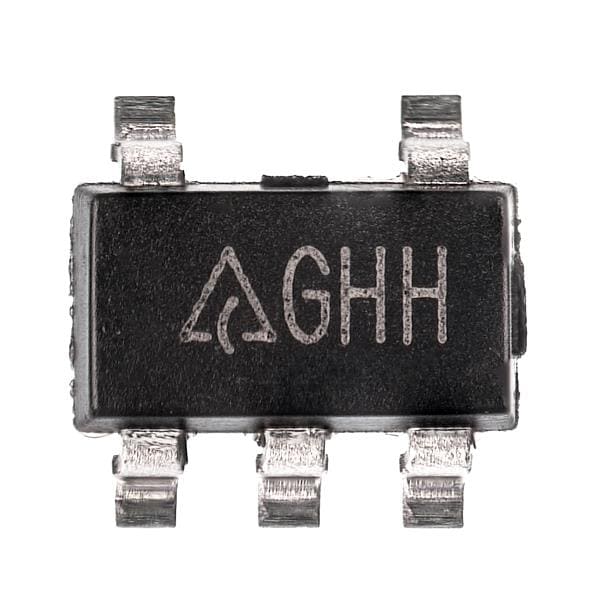

Diodes Incorporated AP2126K-ADJTRG1 CMOS LDO Regulator 450mA CMOS LDO 3V ເຖິງ 6.5V

Polarity: Positive

Output Type: Adjustable

Unit Weight: 15 mg

Mounting Style: SMD/SMT

Output Current: 300 mA

Output Voltage: 1.25 V to 5.5 V

Dropout Voltage: 170 mV

Line Regulation: 0.06 %/V

Load Regulation: 0.6 %/A

Number of Outputs: 1 Output

Quiescent Current: 60 uA

Reference Voltage: 1.25 V

Moisture Sensitive: Yes

Input Voltage - Max: 6 V

Input Voltage - Min: 3 V

Output Voltage Range: 1.25 V to 5.5 V

Voltage Regulation Accuracy: 2 %

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 54 dB
