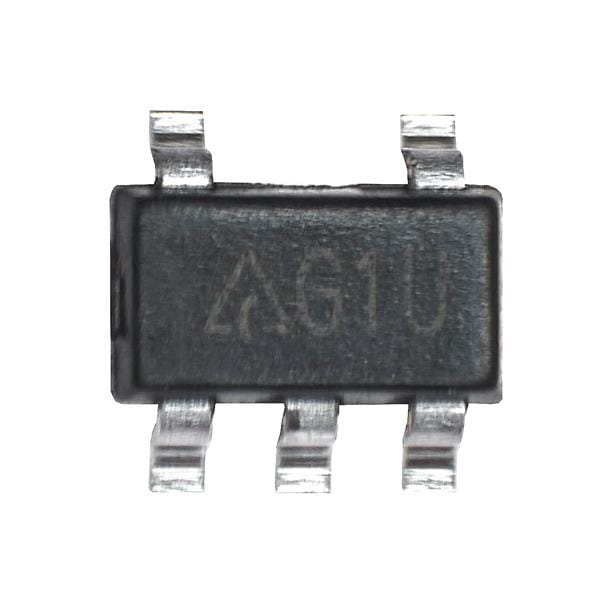

Diodes Incorporated AP2121AK-1.8TRG1 CMOS LDO ຄວບຄຸມ 200mA CMOS LDO 1.8V 150mV

Polarity: Positive

Output Type: Fixed

Unit Weight: 15 mg

Mounting Style: SMD/SMT

Output Current: 200 mA

Output Voltage: 1.8 V

Dropout Voltage: 250 mV

Line Regulation: 4 mV

Load Regulation: 12 mV

Number of Outputs: 1 Output

Quiescent Current: 25 uA

Moisture Sensitive: Yes

Input Voltage - Max: 6 V

Input Voltage - Min: 2 V

Dropout Voltage - Max: 500 mV

Voltage Regulation Accuracy: 2 %

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 70 dB
