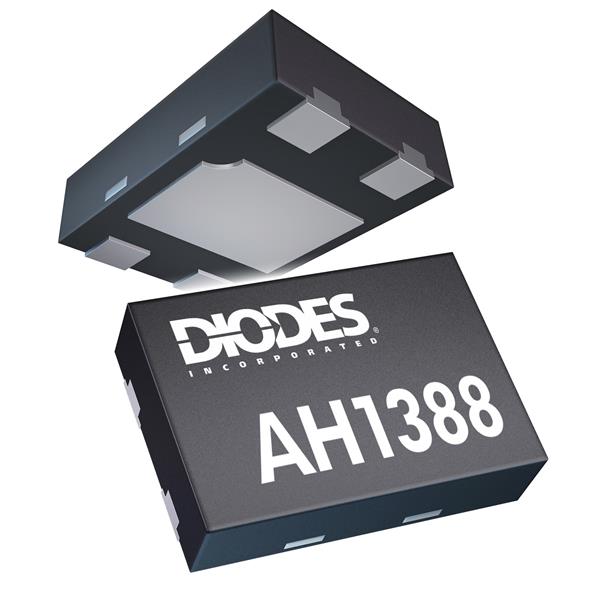

Diodes Incorporated AH1388-HK4-7 ສະຫນັບສະຫນູນ Hall Unipolar Switch X2-DFN1410-4 T&R 4K

Mounting Style: SMD/SMT

Termination Style: SMD/SMT

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.6 V

Maximum Output Current: 1 mA

Pd - Power Dissipation: 230 mW

Operating Point Min/Max: - 24 G to - 8 G, 8 G to 24 G

Operating Supply Current: 720 uA

Operating Supply Voltage: 1.6 V to 3.6 V

Release Point Min/Max (Brp): - 19 G to - 3 G, 3 G to 19 G

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
