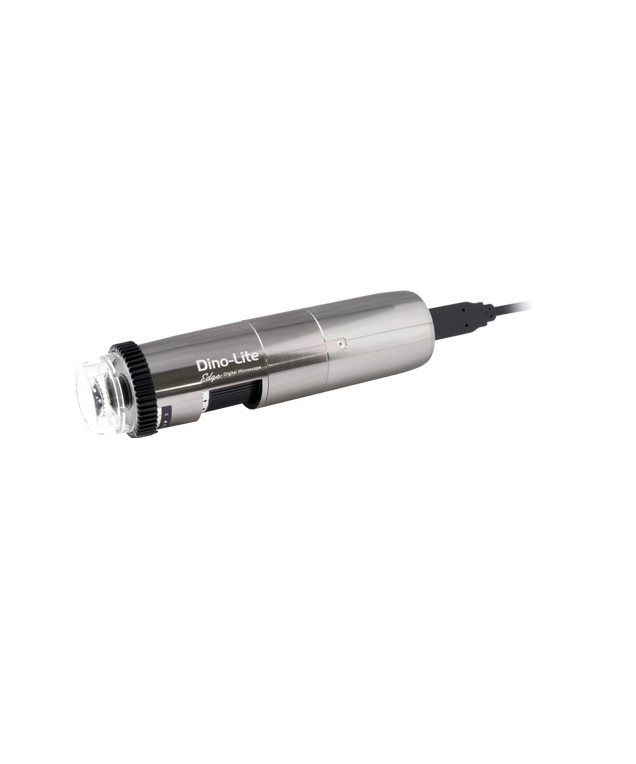

Dino-lite AM8917MZT ກ້ອງຈຸດສະແດງດິຈິຕອນ (10x ~ 220x)

Interface: USB 2.0

​Full Resolution:

8.0 Megapixel (3840 x 2160) on DinoCapture (Windows)

6.0 Megapixel (2880 x 2160) on DinoXcope (macOS)

​Magnification: 10x ~ 220x (Edge shading occurs below 25x when previewing in 16:9 windows.)

Frame Rate

10 fps at 8.0 MP / 6.0 MP, MJPEG

25 fps at 2.0 MP, MJPEG

System Requirements

CPU: 2.9 GHz dual-core Intel Core i5 equivalent or greater

RAM: 4 GB or more

HD: 150 MB available space or more

​Operating System: Windows 10/11

macOS 10.14 or later (EDOF, EDR, DPQ and Auto/Manual Refocus are NOT supported in DinoXcope)

Saving Format

Image:

DinoCapture 2.0: BMP, PNG, TIF, JPG

DinoCapture 3.0: BMP, PNG, TIF, JPG

DinoXcope: PNG, JPEG

Video:

DinoCapture 2.0: WMV, FLV, SWF

DinoCapture 3.0: MP4

DinoXcope: MOV

​Measurement Function: Yes

​Calibration Function: Yes

​Microtouch: Yes

​Scroll Lock: Yes

​Illumination: White Light, 8 LEDs

Included Front Caps

N3C-C (Close Cap)

N3C-D (Diffuser Cap)

N3C-D2 (Opal Diffuser Cap)

N3C-E (Extended Open Cap)

N3C-L (Long Cap)

N3C-O (Open Cap)

N3C-S (Sidelight Cap)

Cable Type

Type-C to Type-C cable (detachable, w/screw lock)

Type-C to Type-A cable (detachable, w/screw lock)

​Cable Length:

Approx. 1.8 m

​Unit Dimension: 130 mm (H) x 33 mm (D)

​Unit Weight: Approx. 120 g
