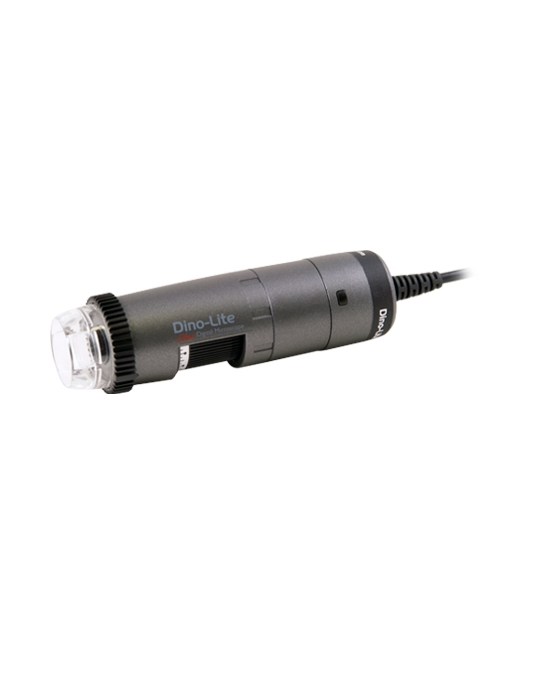

Dino-lite AF4535ZTLE ກ້ອງຈຸລະທັດດິຈິຕອນ (10x ~ 200x, 1.3 Megapixel)

​Interface: USB 2.0

Resolution: 1.3 Megapixel (1280 x 960)

Magnification: 10x ~ 200x

Frame Rate:

15 fps at 1.3 MP, MJPEG

30 fps at VGA, MJPEG

System Requirements:

CPU: 2.5 GHz dual-core Intel Core i5 equivalent or greater

RAM: 4 GB or more

HD: 150 MB space available or more

Operating System: Windows 10/11

Saving Format

Image: DinoCapture 2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM

Video: DinoCapture 2.0: WMV, FLV, SWF

Measurement Function: Yes

Calibration Function: Yes

Microtouch: Yes

​Scroll Lock: Yes

Illumination: White Light, 8 LEDs

Included Front Caps

N3C-C (Close Cap)

N3C-D (Diffuser Cap)

N3C-D2 (Opal Diffuser Cap)

N3C-E (Extended Open Cap)

N3C-L (Long Cap)

N3C-O (Open Cap)

N3C-S (Sidelight Cap)

Cable Type: USB Type-A cable

Cable Length: Approx. 1.8 m

Unit Dimension: 114 mm (H) x 34 mm (D)

Unit Weight: Approx. 110 g, incl. cable and cap (N3C-O)
