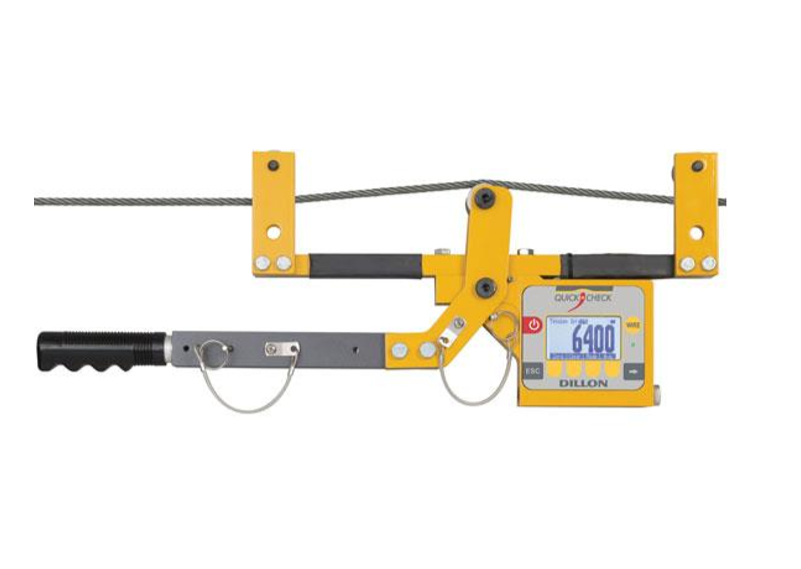

DILLON Quick Check – T Quick Check-T Wire Tension Meter (4500 kg)
Markets / Industries: Tower and stack guy wires, cable barriers, overhead transit wires, bridges, fall arrest, stage support, aircraft cables and public utilities
Capacities: 10,000 lb 4500 kg
Rope Calibrations: Up to 20 (must be specified at time of order)
Cable Diameter Range: 3/16” to 1” 4.75 mm to 25.4 mm
Display Informative: 128 x 64 dot-graphic LCD display
Shows: Unit, Wire Type, Sheave, Temperature, Target Tension, Site ID, Leg, Wire, GPS Coordinates, and Battery.
Display Backlight: Yes (configurable intensity and timer)
Date and Time: Yes
GPS: Internal GPS:
o Horizontal position accuracy of 2.5m
Internal Temperature Sensor: +/- 2˚C
Wireless Radio:
- 2.4GHz Wireless connection to a Communicator II handheld
- Internal antenna with an outdoor range of 600ft line of sight and 300ft typical indoor range dependent on environment.
Calibration Reminder: Yes
AZT (Automatic Zero Tracking) & Filtering: Configurable AZT and Filtering
RS-232 Port:
- Four pin Lemo RS-232 Output
- RS232 to USB Cable Kit available P/N AWT05509542
Carry Case: Yes
Enclosure: Suitable for continuous outdoor use
Units of Measure: lbf, kgf, nf Temperature
Range: -4˚F to 158˚F (-20˚C to 70˚C)
Power: Two C Alkaline batteries
Battery Life: Over 40 hrs continuous*
Accuracy: 3% full scale
User’s Manual: Yes, available for download on Dillon website
Pass/Fail Testing Mode: Yes
Tower Mode: Works with Tower Lookup PC Software to:
o Import and Send Tower Target Tensions to the Quick Check
o Set Wire Target Tension based on Temperature
o Store Pre-Tension & Post-Tension readings for each Leg and Wire with GPS coordinates
