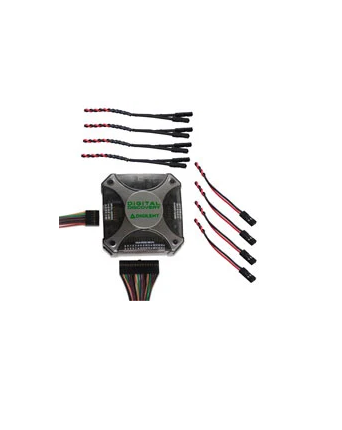

Digilent 240-127 ເຄື່ອງວິເຄາະເຫດຜົນ USB ແບບພົກພາ ແລະ ເຄື່ອງສ້າງຮູບແບບດິຈິຕອນ
Software
WaveForms: WaveForms Resource Center
Digital Logic Analyzer
Channels: 24
Sample Rate: 800 MS/s (with the High Speed Adapter)
Bandwidth: 100 MHz+
Voltage Range: 1.2V to 3.3V (5V compatible when used as inputs)
Buffer: 2Gbit DDR3 acquisition
Bus Analyzers: SPI, I2C, UART, CAN, 125, Parallel and Custom
Digital Pattern Generator
Channels: 16
Sample Rate: 100 MS/s
Bandwidth: 50MHz
Voltage Range: 1.2V to 3.3V
Bus Output: Counters and Custom
Multi-purpose Digital I/O
Channels: 16
Sample Rate: 100 MS/s (50 MHz max output frequency)
Voltage Range: 1.2V to 3.3V (5V compatible when used as inputs)
Buffer: Algorithmic pattern generator (no buffers used)
Protocol Analyzer
Channels: 16-32
Voltage Range: 1.2V to 3.3V (inputs 5V compatible)
Bus Analyzers
UART: send and receive
SPI: read and write
12C: read and write
CAN: rx and tx
Programmable Power Supplies
Voltage Range: 1.2V to 3.3V
Current Limit: 100 mA max available in each of the two 2x6 MTE connectors
