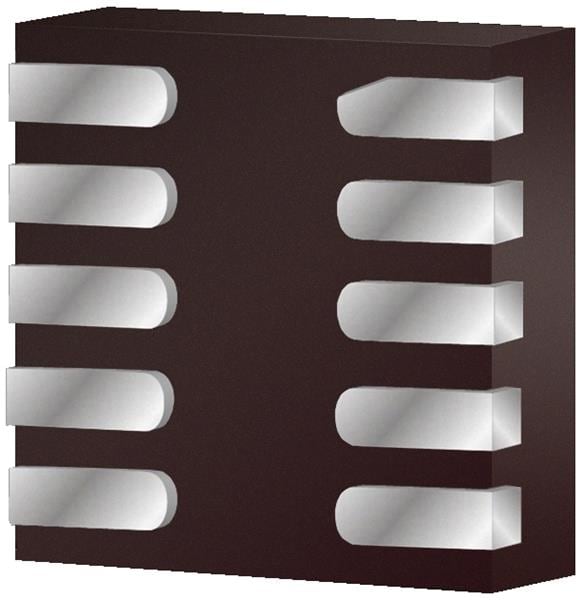

Dialog Semiconductor SLG88101V ເຄື່ອງຂະຫຍາຍສະຫຼຸບການດຳເນີນງານ Dual Operational Amplifer w/ Shutdown

Width: 2 mm

Height: 0.55 mm

Length: 2 mm

Shutdown: Shutdown

Input Type: Rail-to-Rail

Output Type: Rail-to-Rail

Amplifier Type: Rail to Rail Amplifier

Mounting Style: SMD/SMT

SR - Slew Rate: 10.4 mV/us

Number of Channels: 2 Channel

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1.6 V

Ib - Input Bias Current: 23 pA

Operating Supply Current: 400 nA

Ios - Input Offset Current: 110 pA

Output Current per Channel: 14 mA

Vos - Input Offset Voltage: 400 uV

GBP - Gain Bandwidth Product: 17.6 kHz

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

en - Input Voltage Noise Density: 231 nV/sqrt Hz

CMRR - Common Mode Rejection Ratio: 58 dB
