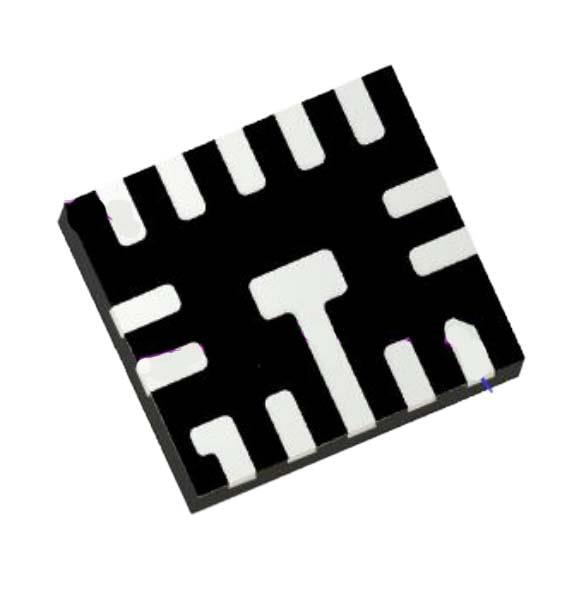

Dialog Semiconductor SLG51003V Multi-Output LDOs 3-Channel High PSRR LDO Power GreenPAK

Polarity: Positive

Output Type: Adjustable

Mounting Style: SMD/SMT

Output Current: 475 mA, 500 mA, 800 mA

Development Kit: SLG51003V-EVB

Dropout Voltage: 10 mV

Line Regulation: 4.6 mV

Load Regulation: Yes, Regulated

Number of Outputs: 3 Output

Quiescent Current: 300 nA

Reference Voltage: 1.2 V

Input Voltage - Max: 5 V

Input Voltage - Min: 2.8 V

Output Voltage Range: 2.4 V to 3.3 V, 1.2 V to 3.75 V, 500 mV to 1.4 V

Dropout Voltage - Max: 200 mV

Pd - Power Dissipation: 2.25 W

Operating Temperature Range: - 40 C to + 85 C

Voltage Regulation Accuracy: 1 %

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 98.5 dB
