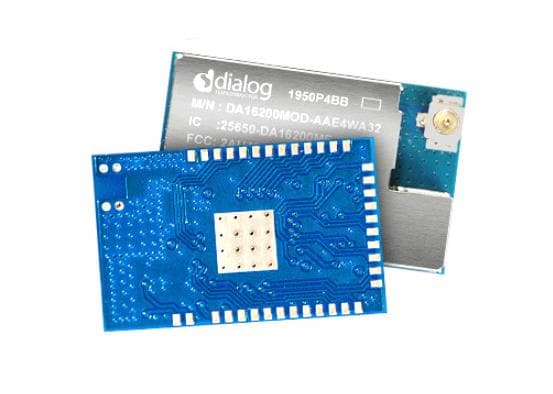

Dialog Semiconductor DA16200MOD-AAE4WA32 ໂມດູນ WiFi ໂມດູນ Wi-Fi SoC (ຕົວເຊື່ອມ u.FL)

Data Rate: 72 Mb/s

Frequency: 2.4 GHz

Dimensions: 22.1 mm x 13.8 mm x 3.3 mm

Output Power: 19 dBm

Interface Type: GPIO, I2C, I2S, JTAG, PWM, SDIO, SPI, SWD, UART

Moisture Sensitive: Yes

Protocol Supported: 802.11 b/g/n

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 2.1 V

Antenna Connector Type: U.FL

Operating Supply Voltage: 3.3 V

Protocol - WiFi - 802.11: 802.11 b/g/n

Supply Current Receiving: 29 mA, 30.5 mA, 37.5 mA, 38.5 mA

Supply Current Transmitting: 200 mA, 260 mA, 280 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
