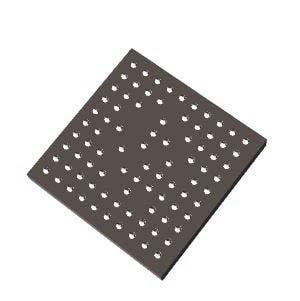

Dialog Semiconductor DA14691-00000HQ2 ບລູທູດ ມັດຕິ-ເຄີ ວ່າຍເລດ MCU ສໍາລັບ Bluetooth 5.2 ແລະ ໂປໂຣໂຕຄອນ 2G4 ສ່ວນຕົວ

Core: ARM Cortex M33

Width: 6 mm

Height: 0.9 mm

Length: 6 mm

Technology: Si

Sensitivity: - 97 dBm

Output Power: 6 dBm

Data RAM Size: 384 kB

Data RAM Type: SRAM

ADC Resolution: 10 bit, 14 bit

Data Bus Width: 32 bit

Interface Type: I2C, I2S, SPI, UART, USB

Mounting Style: SMD/SMT

Number of I/Os: 44 I/O

Number of Timers: 4 Timer

Maximum Data Rate: 1 Mbps

Moisture Sensitive: Yes

Operating Frequency: 2.4 GHz

Program Memory Size: 4 kB, 128 kB

Program Memory Type: OTP

Supply Voltage - Max: 4.75 V

Supply Voltage - Min: 2.4 V

Number of ADC Channels: 16 Channel

Maximum Clock Frequency: 96 MHz

Supply Current Receiving: 1.8 mA

Supply Current Transmitting: 3 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
