DHC AE12000U ຕູ້ຊາດແບດເຕີຣີ ແລະ ອຸປະກອນຈິດກະລຸນາພະລັງງານ (20Ah – 1000Ah)

Battery Types: 12V Flooded, AGM Flat/Spiral, EFB, VRLA, GEL, Lithium (LFP)

Charge Capacity: 20Ah - 1000Ah

Max Sustained Output (Mode Dependent):

Battery Charge ..........100A

Power Supply ............120A

Showroom ..................50A

Memory Saver ............30A

Protection (Message & Buzzer):

Reverse Polar

Short Clamp

Over Voltage

Over Current

Over Temperature

Clamp-Cable Length: 3m or 5m (approx. 9.8ft or 16.4ft)

AC Cord: 3m (approx. 9.8ft)

Operating Temperature: 0 - 40°C (32 - 104°F) With Active Cooling

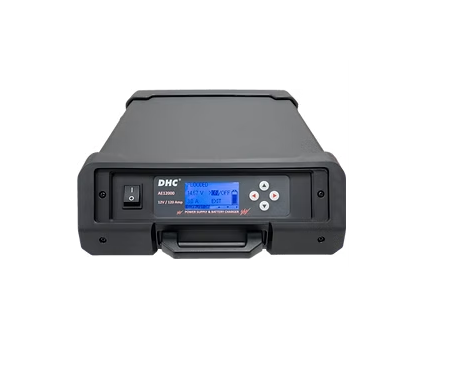

The AE12000U is a multi-purpose battery charger and power supply. With the capability to provide 120A of sustained output, it is suitable for a diverse set of applications. It can be powered by either 110 – 120V (20A) or 220 – 240V AC input.

Features:

120A Power Supply Mode for ECU and module programing.

Battery Charging Mode supplies up to 100A charging current.

Showroom Mode Supplies 50A of power silently.

Memory Saver Mode Retains ECU and module memories

while changing battery.

4 Backlit Color Display.

USB Type-B Interface.

Ergonomic Fully-Insulated Heavy-Duty Clamps.

Reinforced Output Connector.

Includes wall mount bracket and UI rotating feature.
