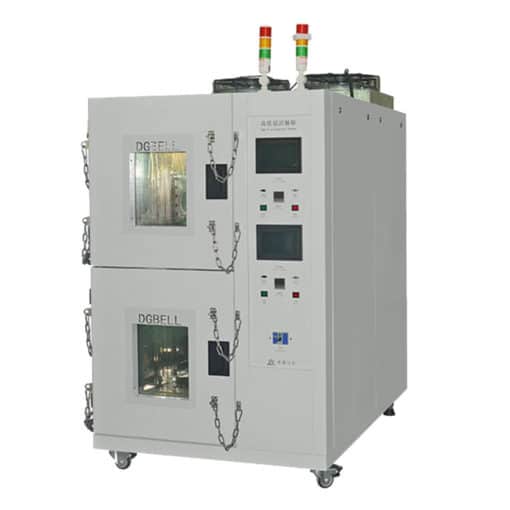

DGBell BTL-D2-288C Double-deck ຫ້ອງທົດສອບອຸນຫະພູມສູງແລະຕ່ໍາ (-40℃ ~150℃)
Single Cabinet Inner Dimension:W800 X D600 X H600 MM
External Dimension: W1500*H1950*D1700 MM
Structure Mode:An integral structure with upper and lower cabinets.
Temperature Range: -40℃ — +150℃
Temperature Fluctuation: ±0.3℃
Heating Rate: Average 1~3°C/minute (non-linear no-load)
Cooling Rate: Average 1.0°C/min Full rang (non-linear no-load)
Temperature Uniformity:≤±2℃(at no load, constant state)
Observation Window: Three-layer vacuum tempered glass
Test Terminal: 12 sets of terminals are connected to the test cabinet inside and outside of the chamber
Cooling Mode: Air cooling / Water cooling (Optional)
Compressor: Tecumseh (France)
Controlling Mode: Touch screen programmable control PLC, with USB interface, with RS485 .interface can be connected to computer control, special network control software, convenient remote monitoring, data acquisition
Internal Chamber Material: 1.0MM thick SUS304# stainless steel with mirror finish, sprayed with Teflon insulation
External Chamber Material: 1.2 MM thick Galvanized sheet, dusting pained with high temperature plasticized coating.
Power Supply: AC380V 50HZ 14KW
Safety Protection: Automatic explosion-proof pressure relief device, explosion-proof chain, tri-color light alarm device, remote control, smoke exhaust device, fire extinguishing device, etc.
Extension Function: Provide communication protocol, able to accompanied use with charge and discharge machine
