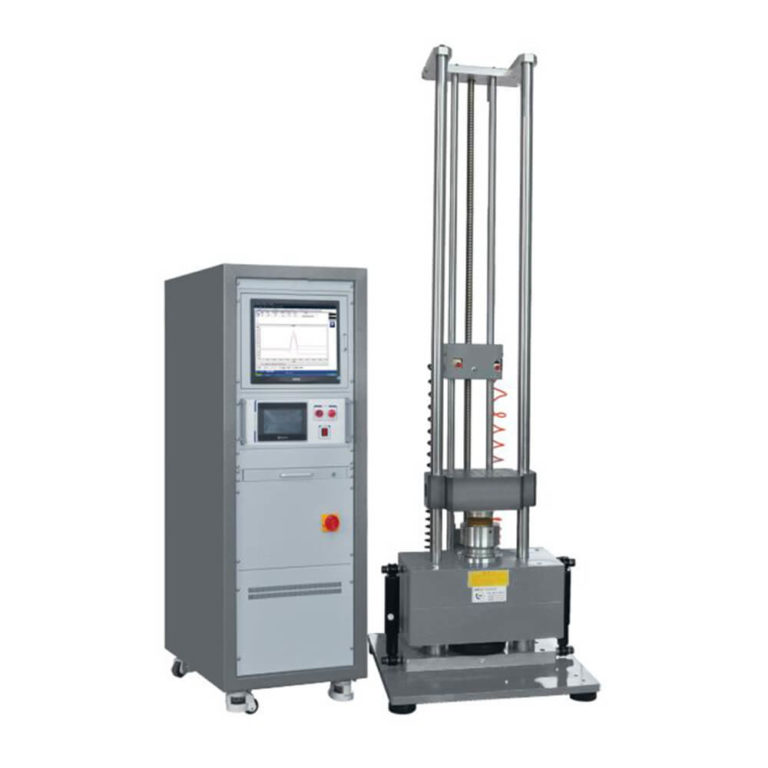

DGBell BE-SKT-10 ລະບົບທົດສອບ Shock ສໍາລັບການທົດສອບຫມໍ້ໄຟ Lithium (150 ～ 15000 m / s2)
Specified Load: 10 kg, (Including fixtures and test specimen)
Bench Dimension: L200×W200 mm
Pulse Wave: Half sinusoidal wave
Shock Impact Peak Acceleration: 150～15000 m/s2
Pulse Duration: 0.6～20ms
External Dimension: L1000mm×W500mm×H2700mm
Total Weight: 1500 kg
Impact Form: Free fall
Max. Drop Height: 1500mm
Power Supply: Three phase 380V，50/60 Hz
Hydraulic Source: With the equipment
Ambient Condition:
Temperature: 0～40℃
Humidity（25℃）:＜85％
Reliability
1.Average failure-free accumulation working time ≥ 1000h;
2.The half-sine waveform generator has no less than 5000 consecutive impacts;
3.The half-sine waveform generators have a storage time of no less than 5 years in a clean, room temperature environment.
Testing System: Shock DAQ, Impact, collision measurement control system
Usage Standard: GJB150、GJB360、GJB548、GB/T2423、GJB1217、JJG497、GIEC68-2-27
Testing Standard: Acceleration amplitude, pulse width, uniformity, and lateral motion ratio meet the requirements of JJG541-88.
