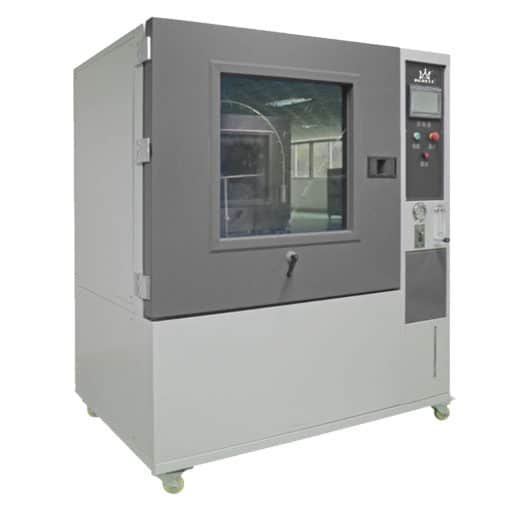

DGBell BE-LY-800 Rain Spray Test ຫ້ອງສິ່ງແວດລ້ອມ (200-400, 1-999.999 phút)

Test Space W x H x D(mm): 800x800x800

External Dimension W x H x D(mm): 1160x1640x960

Test Bench Speed(rpm): 1-5(Adjustable)

Turntable Diameter: φ 300mm

Turntable Load: 20KG

Intermittent be Caught in Time: 15min/25min

Speed: 5-10 s/rpm

Water Ring Radius: 375mm,pipe diameter Φ16mm

Nozzle Jet angle: 40°,90°,135°fix direction, water spray towards rotary center.

Each Spray Hole Flow: 100±5 L/min(adjustable),flow display direct reading.

Water Spray Pressure: 200-400, a pressure gauge directly reading,

Test Time: 1-999,999min(adjustable)

Safety Protection: Power overload, short circuit protection, earthling protection, water protection and alarm-ring tip.
