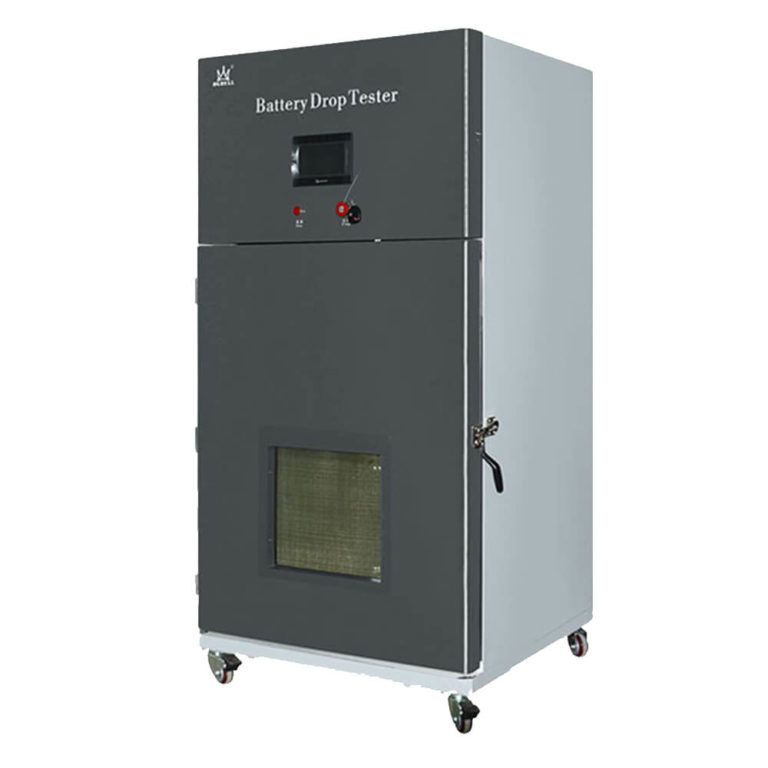

DGBell BE-8108 Battery Drop Chamber ສໍາລັບການທົດສອບຄວາມປອດໄພຫມໍ້ໄຟ (300 ～ 1500mm, 0 ～ 5kg)
Drop Height: 300～1500mm (Adjustable)
Testing Method:Free fall
Test Loading: 0～5kg
Specimen Max. Dimension: W200 x D200 x H200mm
Machine Dimension: W700 X D900 X H1800mm
Motor Power: 90W
Control Mode: PLC touch screen (7-inch touch screen) + Remote control
Internal Material: SUS 304# Stainless steel
External Material: 1.5mm thickness Cold plate
Falling Method: Pneumatic drop
Lifting Method: Electric
Power Supply: 220V 50Hz
Safety device: Fully enclosed explosion-proof device
Pressure: ＞0.3Mpa
Drop Panel Size: W600 x D700 x H10mm (solid steel), hardwood, cement board (optional)
Observation Window:390 X 360mm (20mm thickness tempered explosion-proof glass)
Data Output: Test data can be output by USB flash disk directly .
Safety Protection: Explosion-proof pressure relief device, smoke exhaust device, fire extinguishing system, electronic door lock system, safety stop switch
Options: Temperature acquisition system, voltage acquisition system, video monitoring system
