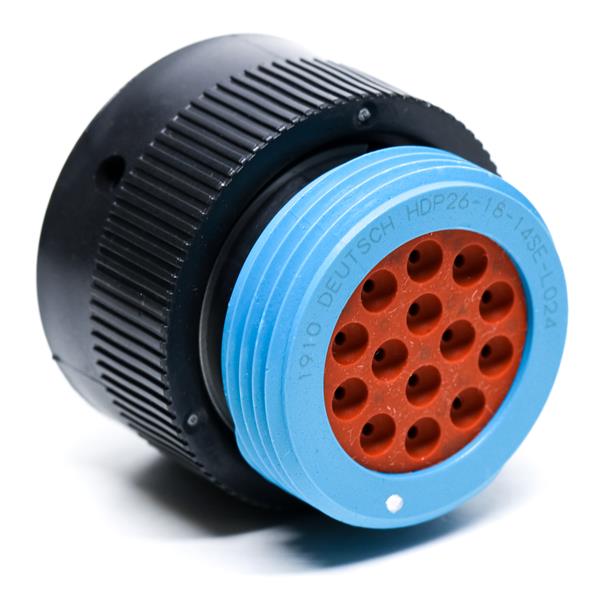

DEUTSCH - TE Connectivity YHDP26-18-14SEL024 ຕົວເຊື່ອມ PLUG SIZE 18 HDP -L024

Color: Black

Width: 43.17 mm

Gender: Plug (Male)

Height: 43.17 mm

Dimensions: 43.17 mm x 43.17 mm x 38.63 mm

Insulation: Insulated

Application: Wire to Wire

Unit Weight: 46.640 g

REACH - SVHC: Details

Mating Gender: Receptacle

Contact Gender: Without Socket Contacts

Current Rating: 13 A

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Voltage Rating: 250 V

Wire Gauge Max: 14 AWG

Wire Gauge Min: 20 AWG

Housing Material: Polyamide (PA)

Wire Gauge Range: 14 AWG to 20 AWG

Locking Mechanism: Integrated in Housing

Termination Style: Crimp

Ingress Protection: IP67

Mating Part Number: HDP24-18-14PE-C041

Number of Positions: 14 Position

Attachment Hole Diameter: 4 mm

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
