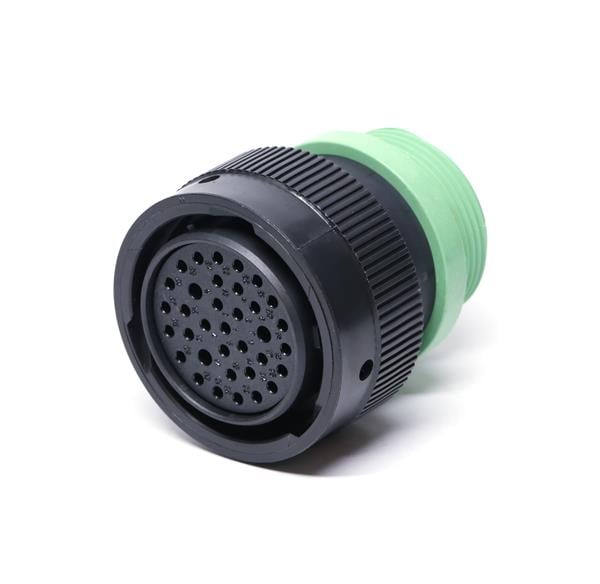

DEUTSCH - TE Connectivity HDP26-24-35SN-L015 ຕົວເຊື່ອມ PLUG ASM

Color: Black

Width: 49.53 mm

Gender: Plug (Male)

Height: 49.53 mm

Length: 42.55 mm

Material: Plastic

Dimensions: 49.53 mm x 49.53 mm x 42.55 mm

Unit Weight: 67 g

REACH - SVHC: Details

Mating Gender: Receptacle

Contact Gender: Without Socket Contacts

Current Rating: 7.5 A, 13 A

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Voltage Rating: 250 V

Wire Gauge Max: 14 AWG

Wire Gauge Min: 22 AWG

Housing Material: Polyamide (PA)

Wire Gauge Range: 22 AWG to 14 AWG

Termination Style: Crimp

Ingress Protection: IP67

Mating Part Number: HDP24-24-35

Number of Positions: 35 Position

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
