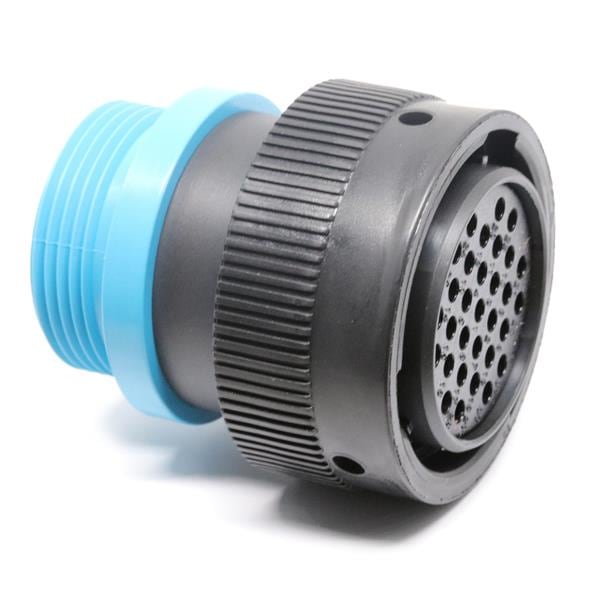

DEUTSCH - TE Connectivity HDP26-24-31SE-L015 ຕົວເຊື່ອມ PLUG ASM

Color: Black

Width: 49.53 mm

Gender: Plug (Male)

Length: 42.55 mm

Material: Plastic

Dimensions: 49.53 mm x 49.53 mm x 42.55 mm

Unit Weight: 62 g

REACH - SVHC: Details

Mating Gender: Receptacle

Contact Gender: Without Socket Contacts

Current Rating: 13 A

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Voltage Rating: 250 V

Wire Gauge Max: 14 AWG

Wire Gauge Min: 20 AWG

Housing Material: Polyamide (PA)

Wire Gauge Range: 14 AWG to 20 AWG

Locking Mechanism: Integrated in Housing

Termination Style: Crimp

Ingress Protection: IP67

Mating Part Number: HDP24-24-31

Number of Positions: 31 Position

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
