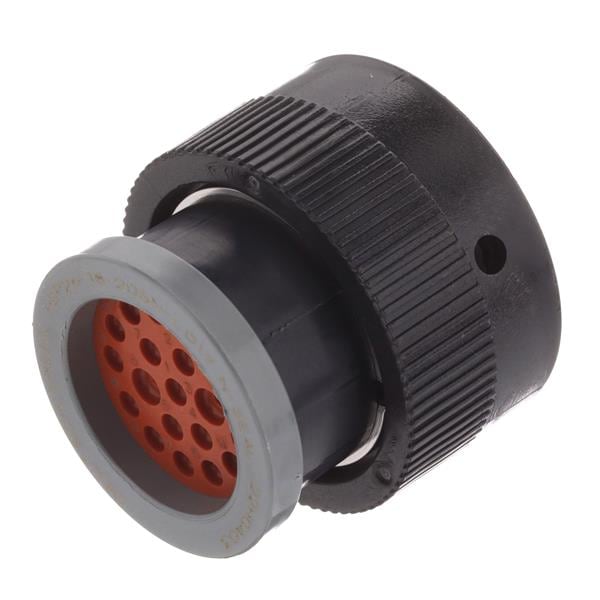

DEUTSCH - TE Connectivity HDP26-18-20SN-L017 ກອງປະກອບ PLUG ASM

Color: Black

Width: 43.17 mm

Gender: Receptacle (Female)

Height: 43.17 mm

Length: 41.53 mm

Dimensions: 43.17 mm x 43.17 mm x 41.53 mm

Unit Weight: 47 g

REACH - SVHC: Details

Accessory Type: Plug Housing

Contact Gender: Without Socket Contacts

Current Rating: 7.5 A, 13 A

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Voltage Rating: 250 V

Housing Material: Polyamide (PA)

Termination Style: Crimp

Ingress Protection: IP67

Mating Part Number: HDP24-18-20

Number of Positions: 20 Position

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
