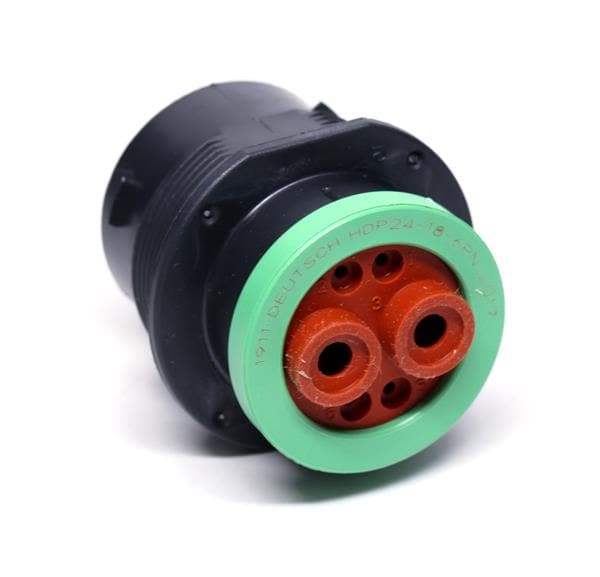

DEUTSCH - TE Connectivity HDP24-18-6PN-L017 ກອງຮັບ RECP ASM

Color: Black

Gender: Plug (Male)

Height: 41.28 mm

Length: 41.86 mm

Insulation: Insulated

Unit Weight: 38.480 g

Accessory Type: Plug Housing

Contact Gender: Without Pin Contacts

Current Rating: 13 A, 100 A

Mounting Angle: Straight

Mounting Style: Panel Mount

Voltage Rating: 250 V

Wire Gauge Max: 14 AWG

Wire Gauge Min: 20 AWG

Housing Material: Polyamide (PA)

Wire Gauge Range: 14 AWG to 20 AWG

Termination Style: Crimp

Ingress Protection: IP67

Mating Part Number: HDP26-18-6S

Number of Positions: 6 Position

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
