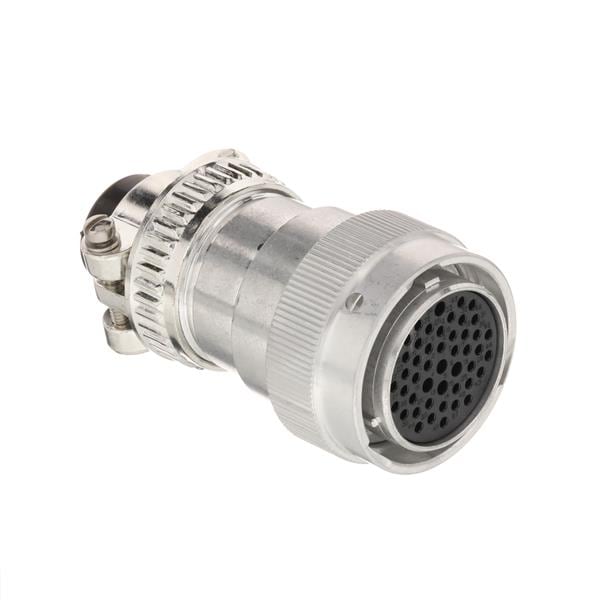

DEUTSCH - TE Connectivity HD36-24-47SE-059 ຕົວເຊື່ອມ PLUG ASM

Color: Silver

Width: 49.32 mm

Gender: Plug (Male)

Height: 49.32 mm

Length: 81.05 mm

Material: Aluminum

Dimensions: 49.32 mm x 49.32 mm x 81.05 mm

Unit Weight: 145 g

REACH - SVHC: Details

Contact Gender: Without Socket Contacts

Current Rating: 7.5 A, 13 A

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Voltage Rating: 250 V

Wire Gauge Max: 14 AWG

Wire Gauge Min: 22 AWG

Housing Material: Aluminium

Wire Gauge Range: 22 AWG to 14 AWG

Termination Style: Crimp

Ingress Protection: IP67

Mating Part Number: HD34-24-XXX

Number of Positions: 47 Position

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
