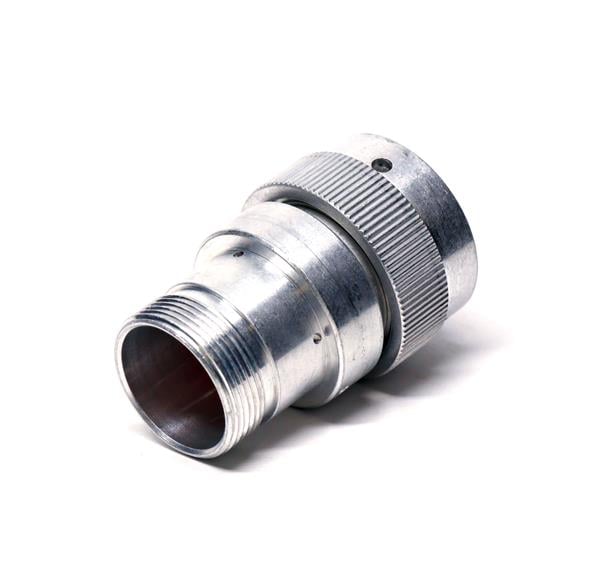

DEUTSCH - TE Connectivity HD36-18-20PN-059 ຕົວເຊື່ອມ PL HD30 18 SHL 20 WY N SEAL REV CLMP

Width: 42.97 mm

Gender: Plug (Male)

Height: 77.7 mm

Length: 42.97 mm

Material: Aluminum

Dimensions: 42.97 mm x 77.7 mm x 42.97 mm

Application: Wire to Wire

Unit Weight: 112.254 g

REACH - SVHC: Details

Contact Gender: Without Pin Contacts

Current Rating: 7.5 A, 13 A

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Voltage Rating: 250 V

Wire Gauge Max: 14 AWG

Wire Gauge Min: 22 AWG

Housing Material: Aluminium

Wire Gauge Range: 22 AWG to 14 AWG

Locking Mechanism: Integrated in Housing

Termination Style: Crimp

Ingress Protection: IP67

Mating Part Number: HD34-18-XXXX

Number of Positions: 20 Position

Attachment Hole Diameter: 1.5 mm

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
