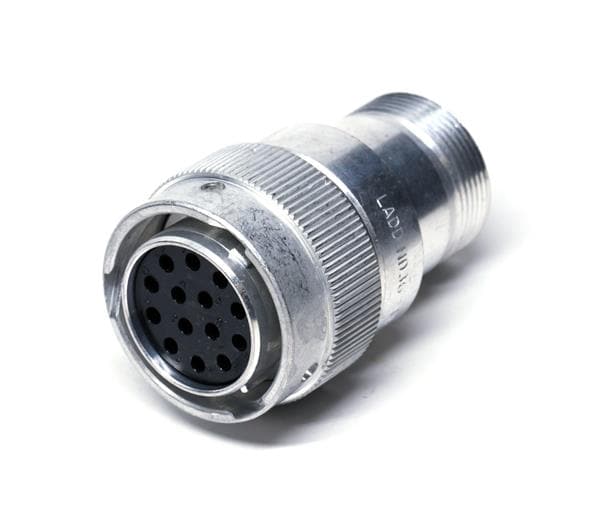

DEUTSCH - TE Connectivity HD36-18-14SE-L005 ຕົວເຊື່ອມ PL HD30 18 SHL 14 WY E SEAL ADP NO HOLES

Color: Natural

Width: 42.97 mm

Gender: Plug (Male)

Height: 65.28 mm

Length: 42.97 mm

Dimensions: 42.97 mm x 65.28 mm x 42.97 mm

Application: Wire to Wire

Unit Weight: 79.328 g

REACH - SVHC: Details

Mating Gender: Receptacle

Contact Gender: Without Socket Contacts

Current Rating: 13 A

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Voltage Rating: 250 V

Wire Gauge Max: 14 AWG

Wire Gauge Min: 20 AWG

Housing Material: Aluminium

Wire Gauge Range: 14 AWG to 20 AWG

Locking Mechanism: Integrated in Housing

Termination Style: Crimp

Ingress Protection: IP67

Mating Part Number: HD34-18-XXS

Number of Positions: 14 Position

Attachment Hole Diameter: 1.5 mm

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
