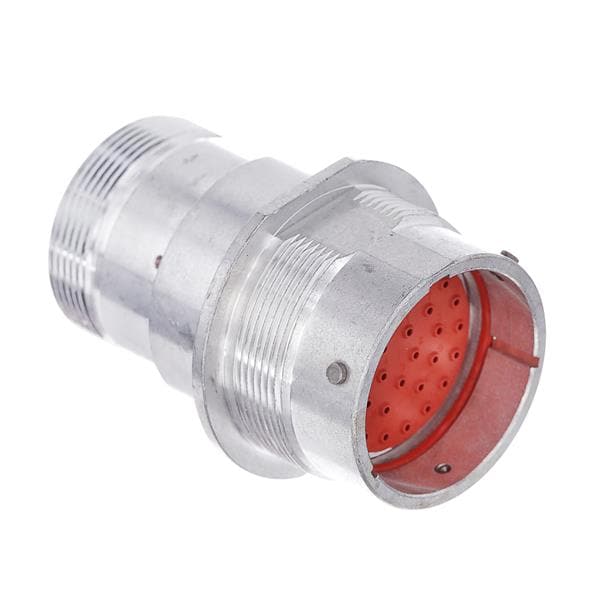

DEUTSCH - TE Connectivity HD34-24-33PN-072 ຕົວເຊື່ອມ REC, 33P, AL, N, THD ADPT DRAIN, 20, P

Width: 50.8 mm

Gender: Receptacle (Female)

Height: 47.53 mm

Length: 84.28 mm

Material: Aluminum

Dimensions: 50.8 mm x 47.53 mm x 84.28 mm

Application: Wire to Wire

Unit Weight: 87.429 g

Contact Gender: Without Pin Contacts

Current Rating: 7.5 A

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Voltage Rating: 250 V

Wire Gauge Max: 16 AWG

Wire Gauge Min: 22 AWG

Housing Material: Aluminium

Wire Gauge Range: 22 AWG to 16 AWG

Locking Mechanism: Integrated in Housing

Termination Style: Crimp

Ingress Protection: IP67

Mating Part Number: HD36-24-XXXX

Number of Positions: 33 Position

Attachment Hole Diameter: 1 mm

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
