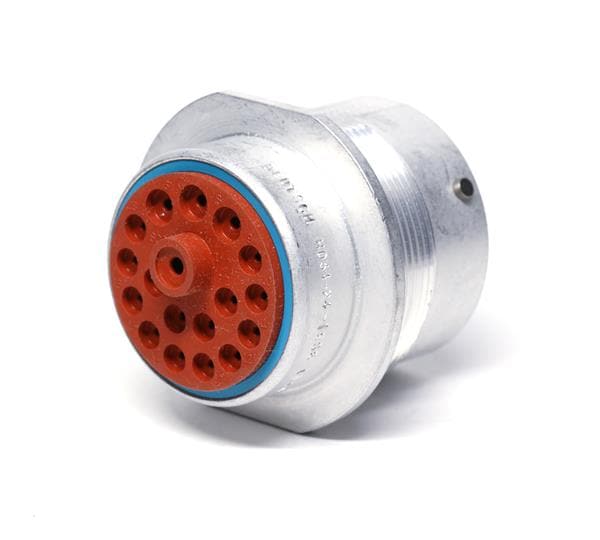

DEUTSCH - TE Connectivity HD34-24-19PE-072 ຕົວເຊື່ອມ RECEPT. HD30 24 SHELL

Width: 50.8 mm

Gender: Receptacle (Female)

Height: 47.53 mm

Length: 41.83 mm

Material: Aluminum

Dimensions: 50.8 mm x 47.53 mm x 41.83 mm

Unit Weight: 85.434 g

REACH - SVHC: Details

Contact Gender: Without Pin Contacts

Current Rating: 13 A, 25 A

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Voltage Rating: 250 V

Wire Gauge Max: 10 AWG

Wire Gauge Min: 20 AWG

Housing Material: Aluminium

Wire Gauge Range: 10 AWG to 20 AWG

Termination Style: Crimp

Ingress Protection: IP67

Mating Part Number: HD36-24-XXXX

Number of Positions: 19 Position

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
