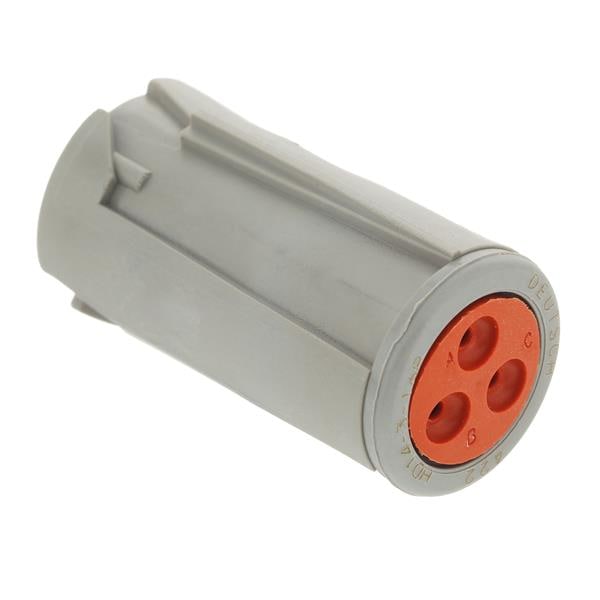

DEUTSCH - TE Connectivity HD14-3-16P ຕົວເຊື່ອມ REC, 3P, GRY, N, 16

Color: Gray

Width: 21.92 mm

Gender: Receptacle (Female)

Height: 21.92 mm

Length: 41.63 mm

Material: Plastic

Insulation: Insulated

Application: Wire to Wire

Unit Weight: 15.300 g

Contact Gender: Without Pin Contacts

Current Rating: 13 A

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Voltage Rating: 250 V

Wire Gauge Max: 14 AWG

Wire Gauge Min: 20 AWG

Housing Material: Polyamide (PA)

Wire Gauge Range: 14 AWG to 20 AWG

Locking Mechanism: Integrated in Housing

Termination Style: Crimp

Ingress Protection: IP68, IP6K9K

Flammability Rating: UL 94 V-1

Number of Positions: 3 Position

Attachment Hole Diameter: 1.5 mm

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
