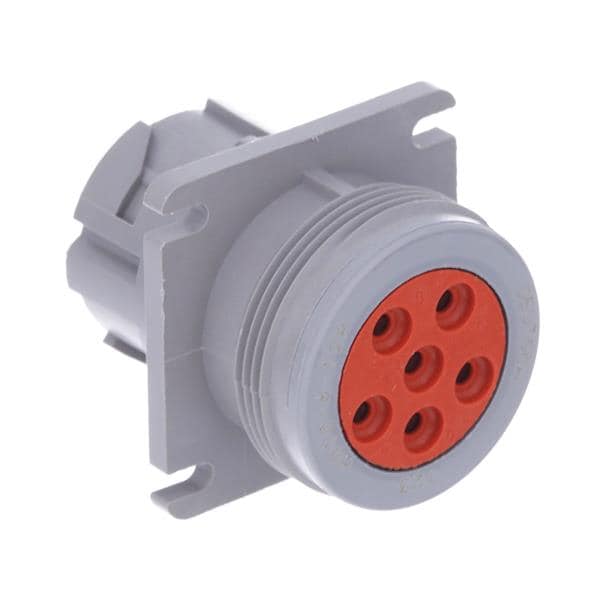

DEUTSCH - TE Connectivity HD10-6-12P 6-Way SZ 12 ສີເຫຼືອງ RECEPT ສີ່ແຫ່ງ FLANGE

Color: Gray

Width: 38.94 mm

Gender: Receptacle (Female)

Height: 38.94 mm

Length: 41.58 mm

Material: Plastic

Dimensions: 38.94 mm x 38.94 mm x 41.58 mm

Insulation: Insulated

Application: Wire to Wire

Unit Weight: 32.700 g

Mating Gender: Plug

Contact Gender: Without Pin Contacts

Current Rating: 25 A

Mounting Angle: Straight

Mounting Style: Mounting Flange

Voltage Rating: 250 V

Wire Gauge Max: 10 AWG

Wire Gauge Min: 14 AWG

Housing Material: Plastic

Wire Gauge Range: 10 AWG to 14 AWG

Locking Mechanism: Integrated in Housing

Termination Style: Crimp

Ingress Protection: IP68, IP6K9K

Mating Part Number: HD16-6-12SX-XXXX

Flammability Rating: UL 94 V-1

Number of Positions: 6 Position

Attachment Hole Diameter: 2.5 mm

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
