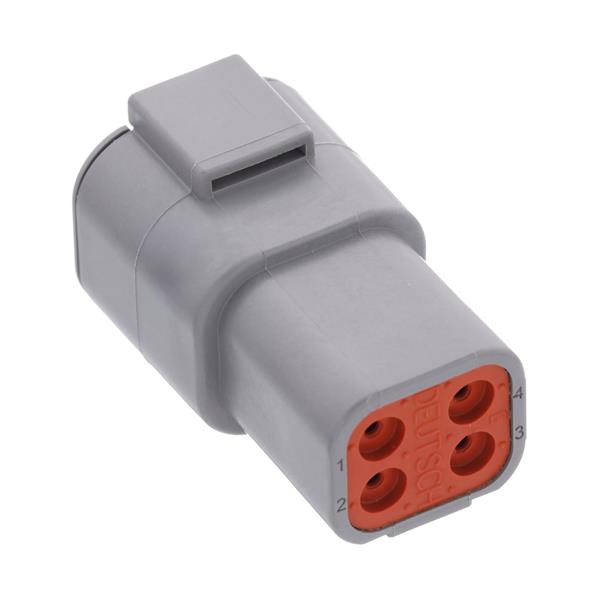

DEUTSCH - TE Connectivity DTP04-4P-C015 4-ທາງ DTP RECP ASM

Color: Gray

Pitch: 6.71 mm (0.264 in)

Width: 26.92 mm

Gender: Receptacle (Female)

Height: 26.62 mm

Length: 47.27 mm

Material: Plastic

Dimensions: 26.92 mm x 26.62 mm x 47.27 mm

Insulation: Insulated

Application: Wire to Wire

Row Spacing: 10.16 mm

Unit Weight: 17.300 g

REACH - SVHC: Details

Mating Gender: Plug

Contact Gender: Without Pin Contacts

Current Rating: 25 A

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 2 Row

Voltage Rating: 200 V

Wire Gauge Max: 12 AWG

Wire Gauge Min: 14 AWG

Housing Material: Polyamide (PA)

Wire Gauge Range: 12 AWG to 14 AWG

Locking Mechanism: Integrated in Housing

Termination Style: Crimp

Ingress Protection: IP68

Mating Part Number: DTP06-4S-xxxx

Number of Positions: 4 Position

Attachment Hole Diameter: 2.5 mm

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
