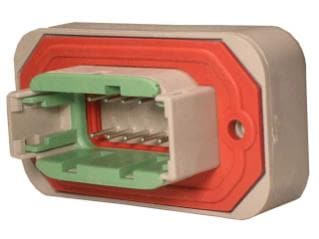

DEUTSCH - TE Connectivity DTM15-12PC 12-Way DTM RECP ASM

Color: Gray

Pitch: 4.19 mm (0.165 in)

Width: 33.02 mm

Gender: Receptacle (Female)

Height: 30.23 mm

Material: Plastic

Dimensions: 33.02 mm x 30.23 mm x 30.23 mm

Row Spacing: 7.11 mm

Unit Weight: 42.180 g

Mating Gender: Plug

Contact Gender: Pin (Male)

Current Rating: 7.5 A

Mounting Angle: Straight

Mounting Style: Through Hole

Number of Rows: 2 Row

Voltage Rating: 250 V

Wire Gauge Max: 16 AWG

Wire Gauge Min: 22 AWG

Contact Plating: Tin

Housing Material: Plastic

Wire Gauge Range: 22 AWG to 16 AWG

Termination Style: Solder Pin

Mating Part Number: DTM06-12SC

Number of Positions: 12 Position

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
