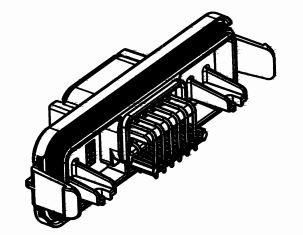

DEUTSCH - TE Connectivity DTM13-12PA-GR01 12-Way DTM RECP ASM

Color: Black

Pitch: 4.19 mm (0.165 in)

Width: 60.96 mm

Gender: Receptacle (Female)

Height: 35.54 mm

Length: 38.23 mm

Material: Plastic

Dimensions: 60.96 mm x 35.54 mm x 38.23 mm

Unit Weight: 42.275 g

REACH - SVHC: Details

Mating Gender: Plug

Contact Gender: Pin (Male)

Current Rating: 7.5 A

Mounting Angle: Right Angle

Mounting Style: Through Hole

Number of Rows: 2 Row

Voltage Rating: 250 V

Wire Gauge Max: 16 AWG

Wire Gauge Min: 22 AWG

Contact Plating: Tin

Housing Material: Plastic

Wire Gauge Range: 22 AWG to 16 AWG

Termination Style: Solder Pin

Mating Part Number: DTM06-12SA

Number of Positions: 12 Position

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
