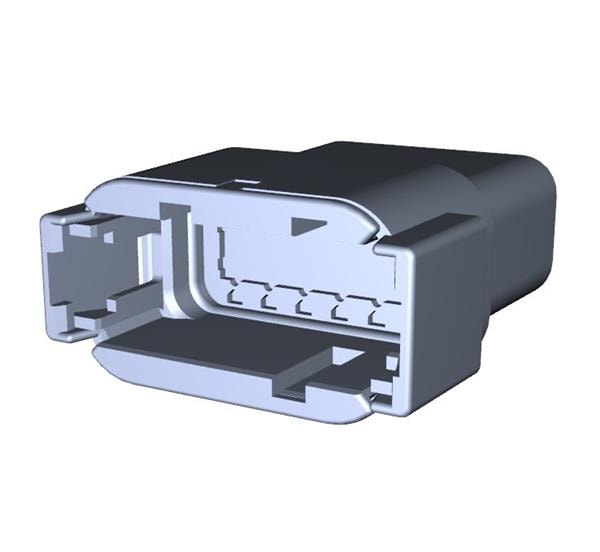

DEUTSCH - TE Connectivity DTM04-12PA-EE04 12-Way 12P DTM RECP ASM KEY A, ອຸນຫະພູມສູງ BLK

Color: Black

Pitch: 4.19 mm (0.165 in)

Width: 20.22 mm

Gender: Receptacle (Female)

Height: 40.01 mm

Length: 43.69 mm

Material: Plastic

Dimensions: 20.22 mm x 40.01 mm x 43.69 mm

Insulation: Insulated

Row Spacing: 7.11 mm

Unit Weight: 16.810 g

REACH - SVHC: Details

Mating Gender: Plug

Contact Gender: Without Pin Contacts

Current Rating: 7.5 A

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 2 Row

Voltage Rating: 250 V

Wire Gauge Max: 16 AWG

Wire Gauge Min: 20 AWG

Housing Material: Nylon

Wire Gauge Range: 16 AWG to 20 AWG

Termination Style: Crimp

Ingress Protection: IP68, IP6K9K

Mating Part Number: DTM06-12SA-xxxx

Number of Positions: 12 Position

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
