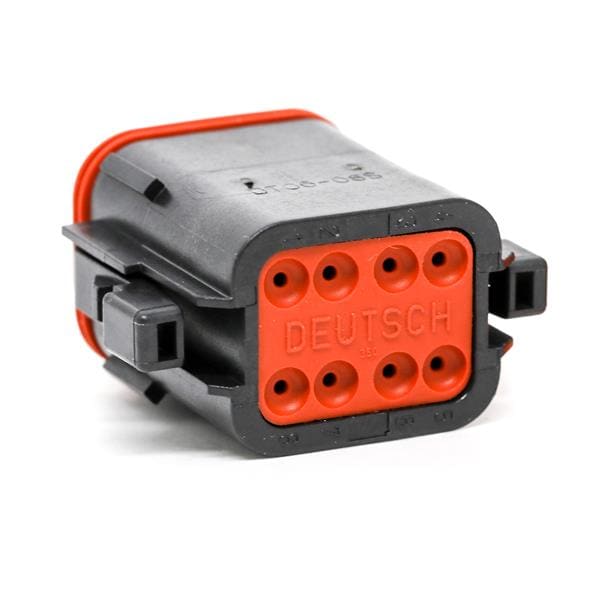

DEUTSCH - TE Connectivity DT06-08SD-CE05 8-Way DT PLUG ASM

Color: Brown

Pitch: 9.12 mm (0.359 in)

Width: 19.71 mm

Gender: Plug (Male)

Height: 37.21 mm

Length: 30.91 mm

Material: Plastic

Dimensions: 19.71 mm x 37.21 mm x 30.91 mm

Insulation: Insulated

Row Spacing: 4.45 mm

Unit Weight: 14 g

REACH - SVHC: Details

Mating Gender: Receptacle

Contact Gender: Socket (Female)

Current Rating: 13 A

Housing Gender: Plug (Male)

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 2 Row

Voltage Rating: 250 V

Wire Gauge Max: 14 AWG

Wire Gauge Min: 20 AWG

Housing Material: Polyamide (PA)

Wire Gauge Range: 14 AWG to 20 AWG

Termination Style: Crimp

Ingress Protection: IP68

Mating Part Number: DT04-08PD

Number of Positions: 8 Position

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
