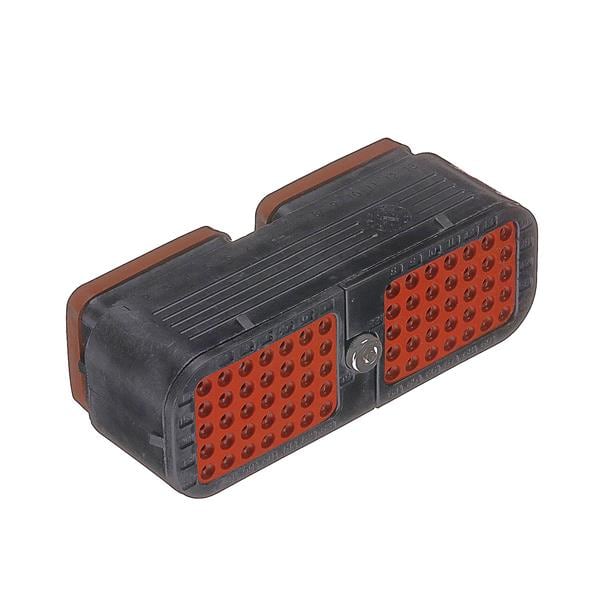

DEUTSCH - TE Connectivity DRC16-70SC ຮາວຊິ້ງ 70P PLUG ASM

Color: Black

Pitch: 5.49 mm (0.216 in)

Width: 103.99 mm

Gender: Plug (Male)

Height: 36.06 mm

Length: 41.73 mm

Material: Plastic

Dimensions: 103.99 mm x 36.06 mm x 41.73 mm

Row Spacing: 5.49 mm

Unit Weight: 160.600 g

Contact Gender: Socket (Female)

Current Rating: 13 A

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 5 Row

Voltage Rating: 250 V

Wire Gauge Max: 14 AWG

Wire Gauge Min: 20 AWG

Wire Gauge Range: 14 AWG to 20 AWG

Termination Style: Crimp

Ingress Protection: IP68, IP6K9K

Mating Part Number: DRC12-70PC, DRC13-70PC, DRC14-70PC

Flammability Rating: UL 94

Number of Positions: 70 Position

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
