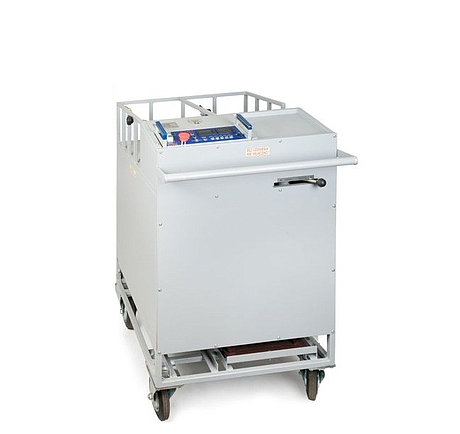

DTE SWGB-22-7 Surge Wave Generator ກັບການທົດສອບ (22kV)
ຜູ້ຜະລິດ: DTE Model: SWGB-22-7 - ຕິດຕໍ່ພົວພັນ
Surge voltage: 22kV
Surge voltage ranges: 5-10-15-20 (kV)
Discharge pulse energy: 1543 (Option: 3087)Joules
Storage capacity: 7 (Option 14) uF
Operating modes: Man/auto
Frequency of pulses in automatic mode: 0.25Hz
Testing cable insulation AC/DC: 1-22kV
Number of burning stages: 4
Burning current in short-circuit mode: 8A
After-burning voltage in the idling mode: 500V
Power consumption of burning unit: 12KVA
Load power min: 3.5KW
Operating mode of the burning unit: continuous
Equipment weight: 170kg
Overall dimensions: 1150x610x1050 mm
ລາຍລະອຽດ
Datasheet
