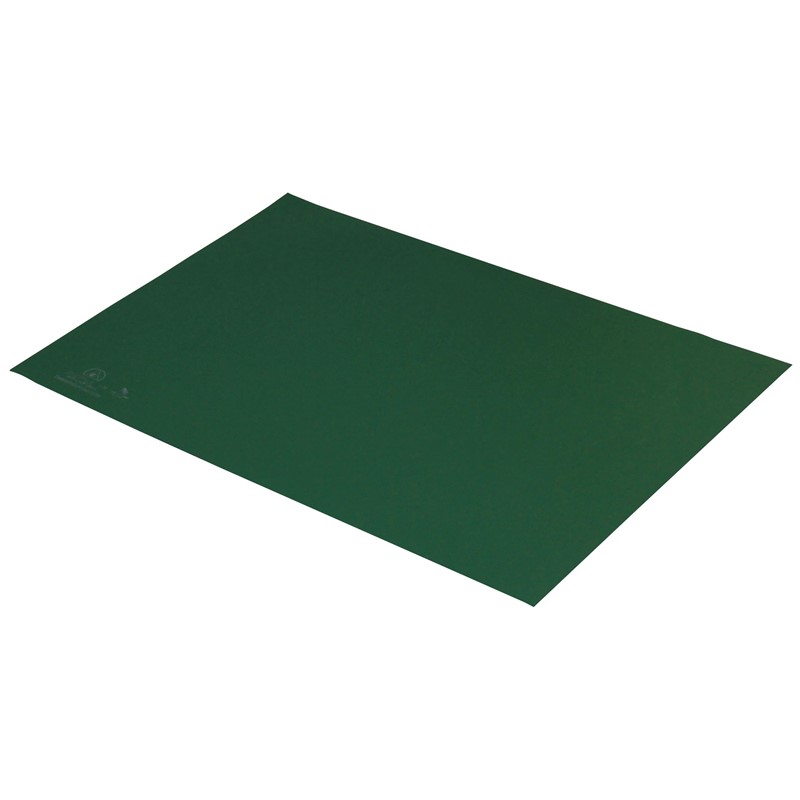

Desco 66489 Dissipative Dual Layer ມ້ວນຢາງພາລາ (30" x 72")
Dissipative Surface Layer
Rtt Resistance: 1 x 10^6 to < 1 x 10^9 ohms ANSI/ESD STM4.1
Rtg Resistance: 1 x 10^6 to < 1 x 10^9 ohms ANSI/ESD STM4.1
Ground Plane Layer
Rtt Resistance: < 1 x 10^6 ohms ANSI/ESD STM4.1
Physical Properties
Construction: Dual-layer rubber material
Thickness: 0.080" (2.0mm)
Weight: 0.43 lbs./sq. ft. (0.2g/cm2)
Hardness: 80 to 90 per JIS K 6253
Other Properties
Heat Resistance: Does not melt or burn when coming into contact with hot solder and soldering irons.
Chemical Resistance: Resistance to degradation by inorganic acids,organic acids,reducing agents, aliphatic hydrocarbons, mineral oil, aldehydes, and amines.
Oil Absorption Resistance: Resists oil absorption to maintain physical and electrical properties.
Tolerances
Width ± 0.4"
Length ± 0.250" every 1 linear foot of running material.
Thickness ±10%
